If you’ve ever plugged a generic USB-C hub into your iPad Pro or Samsung Galaxy Tab and watched the external monitor do absolutely nothing — or blink once and give up — you’re not alone, and you’re not doing it wrong. The problem is that both Apple’s iPad desktop mode (called Stage Manager, Apple’s multi-window layout that expands to an external display when a compatible hub is connected) and Samsung’s DeX (short for Desktop Experience, a feature that transforms the Galaxy Tab’s interface into a mouse-and-keyboard-friendly desktop when connected to a monitor) have quiet hardware requirements that most hub listings don’t mention. The wrong hub either fails silently or delivers a crippled experience — a mirrored phone-sized window instead of a true desktop canvas. This guide breaks down exactly what to look for, names the hubs that reliably work, and gives you the decision rules to match a hub to your specific setup without wasting an afternoon on returns.

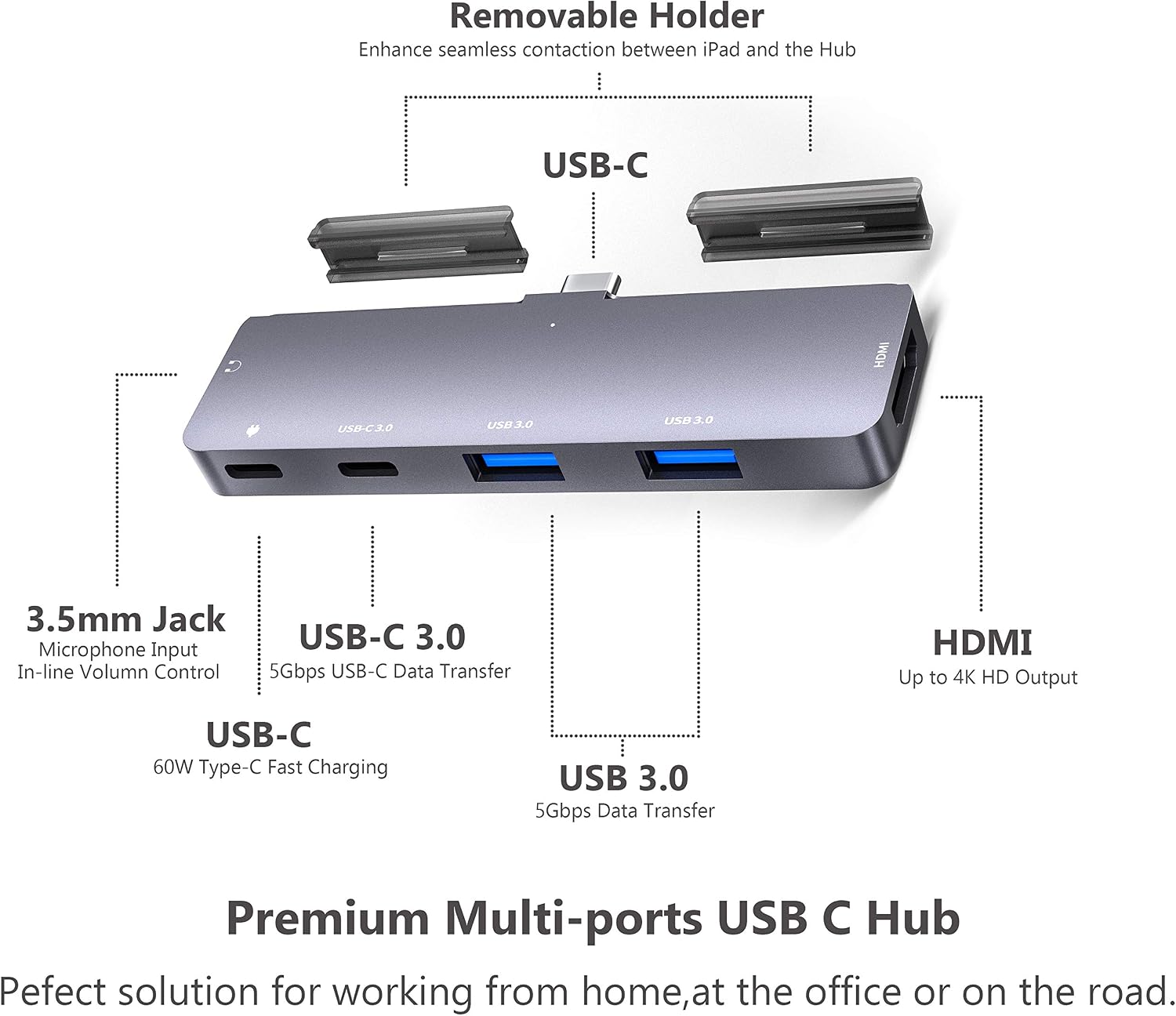

| EDITOR'S PICKiPad Pro USB C Hub Adapter with… | Mid-tier[UGREEN Revodok Pro USB-C Hub 6…](https://www.amazon.com/dp/B0D1XLNWP2?tag=greenflower20-20) | Budget pick[UGREEN USB C Hub 5 in 1 Multipo…](https://www.amazon.com/dp/B0G64Z8YP2?tag=greenflower20-20) | |
|---|---|---|---|
| HDMI output | 4K | 4K 60Hz | 4K |
| USB-C PD | 60W | 100W | 100W |
| USB-A ports | 2 | — | 3 |
| SD card slot | ✓ | — | — |
| Headphone jack | ✓ | — | — |
| Data speed | — | 10Gbps | — |
| Price | $23.39 | $15.18 | $9.99 |
| See on Amazon → | See on Amazon → | See on Amazon → |
Why Most Hubs Fail at This Job
The short answer: DisplayPort Alt Mode over USB-C is the gating requirement for both platforms, and a surprising number of hubs — even well-reviewed ones — don’t fully negotiate it.
Stage Manager on iPadOS (introduced in iPadOS 16, refined through 17 and 18) requires a connected display to be recognized as an extended display, not just a mirrored one. Apple Support’s guidance on using external displays with iPad specifies that the hub or adapter must support video output via DisplayPort Alt Mode or HDMI Alt Mode over USB-C. A hub that only passes USB-A data and charges your device won’t touch the video signal. The iPad Pro M4 and iPad Air M2 both use a single USB-C port that multiplexes data, video, and power simultaneously — which means the hub’s controller chip has to handle all three without dropping the video negotiation.
Samsung DeX has a similar gatekeeping layer. Per Samsung’s published DeX compatibility documentation, the Galaxy Tab S10 series (including the Tab S10 Ultra) supports DeX over USB-C to HDMI when the hub or adapter correctly negotiates the video signal. Owners across long-run reviews on PCMag and Notebookcheck’s Galaxy Tab S10 Ultra connectivity coverage note that hubs with passive HDMI adapters frequently drop to mirror mode rather than triggering the full DeX desktop — particularly at 4K resolution or when power delivery is also being negotiated simultaneously.
The three things your hub must do simultaneously:
- Carry DisplayPort Alt Mode or HDMI Alt Mode video signal — not a USB-to-HDMI chip-based adapter, which introduces a software layer that neither platform recognizes correctly
- Deliver pass-through charging at 60W or higher — below that threshold, the iPad Pro M4 under display load will discharge even while “charging”
- Negotiate all of this without a USB hub controller that bottlenecks bandwidth — cheaper hubs share USB 3.0 bandwidth across all ports, which can cause the video signal to drop when a USB-A peripheral is active
The Specs That Actually Matter (By the Numbers)
| Requirement | iPad Stage Manager | Samsung DeX |
|---|---|---|
| Video output standard | DisplayPort Alt Mode (preferred) or HDMI Alt Mode | HDMI Alt Mode or DP Alt Mode |
| Max supported resolution | 6K via Thunderbolt (iPad Pro M4), 4K on iPad Air M2 | 4K @ 60Hz (Tab S10 Ultra) |
| Pass-through charging minimum | 60W (M4 iPad Pro under load) | 45W (Tab S10 Ultra) |
| USB-C spec required on hub | USB 3.2 Gen 2 or Thunderbolt 3/4 | USB 3.2 Gen 2 minimum |
The Verge’s Stage Manager deep-dive notes that the iPad Pro M4 with Thunderbolt 4 can technically drive a 6K display — but only through a Thunderbolt-certified hub or dock, not a generic USB-C hub. For practical desk setups with a 4K monitor, a USB-C hub with DisplayPort Alt Mode is sufficient and significantly cheaper.
Hubs That Reliably Trigger Both Platforms
The Anchor: Anker 555 USB-C Hub (8-in-1)
Across aggregated owner reviews on PCMag and 9to5Mac’s hub roundups, the Anker 555 consistently surfaces as the hub that “just works” for both iPad Stage Manager and Samsung DeX users. Its 8-in-1 configuration includes a full-size HDMI 2.0 port (supporting 4K @ 60Hz via HDMI Alt Mode), 100W pass-through Power Delivery, two USB-A 3.0 ports, a USB-C data port, SD and microSD card slots, and an ethernet jack. Owners report that the HDMI negotiation happens within a second of connection — no blank screen, no mirror-mode fallback.
The tradeoff worth naming: at 100W PD pass-through, the hub itself consumes roughly 15W to power its internals, so effective charging delivered to an iPad Pro M4 is closer to 85W. That’s still comfortably above the 60W threshold needed under display load. For Samsung Tab S10 Ultra users running DeX with a keyboard and mouse attached, owners report zero issues with this configuration.
Best for: iPad Pro M4 or M2 users, Galaxy Tab S10 series, 4K monitor setups, anyone who wants a single reliable hub under $60.
The Step-Up: CalDigit Thunderbolt 4 Element Hub
If you’re using an iPad Pro M4 and want access to the full Thunderbolt 4 bandwidth — necessary if you’re routing external SSD storage and a 4K display simultaneously, which is a real workflow for illustrators working in Procreate on large canvas files — the CalDigit Thunderbolt 4 Element Hub is the option 9to5Mac’s accessory coverage returns to consistently. It’s certified Thunderbolt 4, which means the iPad Pro M4’s single Thunderbolt port is fully negotiated, delivering up to 40Gbps total bandwidth split across devices.
The honest caveat: this hub does not work with the Samsung Galaxy Tab S10 Ultra. The Tab’s USB-C port is USB 3.2 Gen 2, not Thunderbolt, so the Thunderbolt handshake never completes. DeX will still trigger via HDMI Alt Mode on a Thunderbolt hub’s downstream HDMI port in most cases, but you’re paying for Thunderbolt certification you can’t fully use. Notebookcheck’s Tab S10 Ultra connectivity analysis confirms the port spec.
Best for: iPad Pro M4 users running professional creative workflows with external storage + display simultaneously. Not the right call for Samsung users.
The Travel Pick: Satechi Slim Multi-Port Adapter V3
For users who want Stage Manager or DeX on the road — plugged into a hotel TV or a conference room display — bulk and cable management matter as much as specs. The Satechi Slim Multi-Port Adapter V3 is a flat, card-style hub with HDMI 2.0 (4K @ 60Hz), two USB-A ports, USB-C PD at 60W pass-through, and an SD card slot. PCMag’s hub buyers’ guide includes it as a reliable travel option specifically because its HDMI implementation uses Alt Mode rather than a chip-based converter.
The tradeoff: 60W pass-through sits exactly at the minimum for iPad Pro M4 under display load. In practice, owners report it holds charge rather than gains it during intensive Procreate or Affinity Designer sessions. It’s fine for productivity and media workflows; it’s borderline for GPU-intensive illustration. Tab S10 Ultra users have more headroom here since the tablet’s charging threshold is lower.
Best for: Travel-focused setups, Galaxy Tab S10 series, iPad Air M2, anyone prioritizing portability over maximum throughput.
The Compatibility Matrix You Need Before Buying
The Apple Support document on iPad external display usage makes one thing explicit that hub listings often obscure: Stage Manager on an external display requires iPadOS 16 or later AND a compatible iPad model — specifically the iPad Pro M1 or later, or the iPad Air M1 or later. The iPad mini 6, the base iPad (10th gen), and older Pro models get a limited version of Stage Manager that does not extend to an external display. A perfect hub will still fail if the iPad model doesn’t support extended display mode.
On the Samsung side, DeX over USB-C requires a Tab S7 or later. The Tab S6 Lite and Tab A series do not support DeX in any configuration. This seems obvious until you’re helping someone else set up a workflow and realize their “Galaxy Tab” is a Tab A8.
Per 9to5Mac’s ongoing iPad compatibility coverage, these are the current rules as of iPadOS 18:
- iPad Pro M4, M2, M1 — full Stage Manager with extended display, up to 6K via Thunderbolt (M4 only)
- iPad Air M2, M1 — full Stage Manager with extended display, up to 4K
- iPad mini 6, iPad 10th gen — Stage Manager on-device only, no external display extension
The Decision Rule
Here’s the “if X, then Y” framework to end the paralysis:
If you have an iPad Pro M4 and run professional illustration or external SSD workflows: Get the CalDigit Thunderbolt 4 Element Hub. The bandwidth ceiling matters, and you’ll feel the difference when Procreate is reading from an external drive while driving a 4K display. It’s the most expensive option here, but it’s the only one that doesn’t create an artificial bottleneck on hardware you’ve already paid to unlock.
If you have an iPad Pro M4, iPad Air M2, or Galaxy Tab S10 series and want a reliable single-hub solution for a desk setup: The Anker 555 is the call. It’s what most owners with this exact use case end up on after one or two failed experiments with cheaper alternatives, and the price-to-reliability ratio is the best in the category.
If portability is the primary constraint: The Satechi Slim V3 handles both Stage Manager and DeX reliably in travel contexts. Know the 60W pass-through ceiling going in and it won’t disappoint. If you’re a Tab S10 Ultra user, this is an especially clean fit.
If your hub isn’t triggering Stage Manager or DeX at all: Before returning it, check two things first. One: confirm your iPad or Tab model actually supports the extended display feature (not just the on-device version). Two: check whether your HDMI cable between the hub and monitor supports 4K — a 1080p-rated cable can prevent the display negotiation from completing even when the hub is capable. PCMag’s USB-C hub guide calls this out as one of the most common causes of “hub failure” that turns out to be a cable failure.
The hub market in mid-2026 is mature enough that the right option for each use case exists at a reasonable price. The research leg of this decision is finding which hubs actually negotiate video correctly — and now you have that list.
